MoveCommand

The MoveCommand is the analogue of SPEC “move”, but using the ipywidgets interface to move the motors.

The MoveCommand class extends its interface methods to execute, parse initial arguments and display. In order to use MoveCommand, one should call the jupy4syn.CommandButton with the command ‘move’. The arguments can be a string with one or more combinations of motors mnemonics and the value to move the motors to, or it can be a list with the mnemonics.

Its also possible to use no arguments. In this situation and when only the name of the mnemonics are provided, a textbox will be displayed, and its contents will be parsed to the interface as a string.

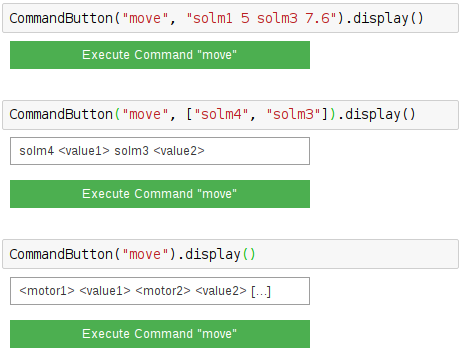

See the examples:

Using Jupy4Syn Commands MoveCommand

Usage of Python class using basic MoveCommand fields.
