SlitsCommand

The SlitsCommand is used to open the Slits Interface using the ipywidgets interface in the Jupyter Notebook environment.

The SlitsCommand class extends its interface methods to execute, parse initial arguments and display. In order to use SlitsCommand, one should call the jupy4syn.CommandButton with the command ‘slits’. The arguments can be a string with the PV names or mnemonics of the desired motors, or it can be a list of strings, with the PV names or mnemonics of the desired motors. Algo, a dictionary can be used, but note that for using the dictionary one must set all the “left”, “right”, “top”, “bottom”.

Its also possible to use no arguments. In this situation, a textbox will be displayed, and its contents will be parsed to the interface as a string.

Note

When the arguments are a list or a string, the order of the motors in the slit interface is left, right, top, bottom.

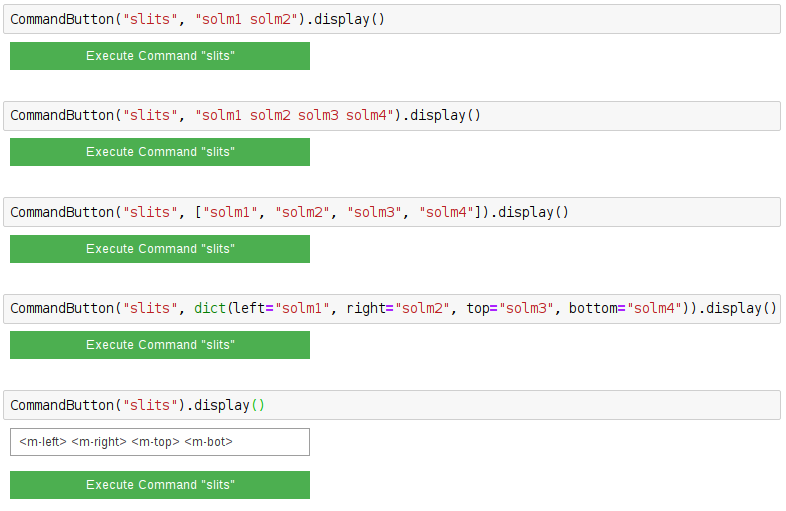

See the examples:

Using Jupy4Syn Commands SlitsCommand

Usage of Python class using basic SlitsCommand fields.
